MQTT

Slideshow contains an MQTT client, which can connect to a remote MQTT broker via internet connection and receive commands from external systems. Thanks to this, multiple instances of Slideshow can be controlled at the same time, even remotely across the world.

Setup of the connection to the broker can be done through the web interface – menu Settings – Device settings – section MQTT. Reload the app after changing the settings in order to apply them. Current connection status can be found via menu Information – About device – MQTT connection state, or on the bottom of the home page.

Supported MQTT version is 5, with optional TLS security or communication through HTTP WebSockets (both configurable in Device settings). Slideshow is tested with HiveMQ and Mosquitto MQTT brokers.

Communication description

Communication via MQTT is asynchronous, Slideshow is listening for commands from an external system. Once the command arrives, Slideshow executes it and returns a response on another topic. If the request contains correlation data, Slideshow will add the same correlation data to the response.

Four MQTT topics are used for the communication with each device, the names are based on the MQTT topic prefix and MQTT topic name from the device settings.

• {MQTT topic prefix}/REQ/{MQTT topic name}/SHELL – request from server to the device to execute shell command
• {MQTT topic prefix}/RESP/{MQTT topic name}/SHELL – response from the device to the shell command
• {MQTT topic prefix}/REQ/{MQTT topic name}/API – request from server to the device to execute API call
• {MQTT topic prefix}/RESP/{MQTT topic name}/API – response from the device to the API call

If no topic name is set in the device settings, MAC address without colons will be used as a default (if available).

Example communication

Topic prefix SLIDESHOW and device with MAC address 01:02:03:04:05:06 (as MQTT topic name setting) is used in all examples below.

Execute shell command

• Request topic: SLIDESHOW/REQ/010203040506/SHELL
• Request message: getprop ro.serialno
• Response topic: SLIDESHOW/RESP/010203040506/SHELL
• Response message: {"command": "echo test", "success": true, "result": { "result": 0, "stdout": "test\n", "stderr": "" }}

Move to the next file

• Request topic: SLIDESHOW/REQ/010203040506/API
• Request message: {"operation": "next"}
• Response topic: SLIDESHOW/RESP/010203040506/API
• Response message: {"command": "next", "success": true}

Display file on screen

• Request topic: SLIDESHOW/REQ/010203040506/API
• Request message: {"operation": "showFile", "parameters": {"zoneName": "Whole screen", "file": "sample1.jpg", "length": 5}}
• Response topic: SLIDESHOW/RESP/010203040506/API
• Response message: {"command": "showFile", "success": true}

Automatically reported data

If Report data through MQTT setting is enabled, Slideshow will automatically report its current device status over MQTT every 2 minutes, without need to make any request. The data is sent to {MQTT topic prefix}/RESP/{MQTT topic name}/API topic. Similarly, enabling Report statistics through MQTT setting causes Slideshow to automatically send statistics about media files displayed in the main zone.

You can find examples of both reports below.

{
  "command": "deviceInfo",
  "success": true,
  "result": {
    "lastDisplayedFile": "Youtube video",
    "deviceAdmin": false,
    "serialNumber": "1ZO9KODTGK",
    "softwareVersionCode": 156,
    "storageSpaceFree": 24738324480,
    "hardwareModel": "DS03",
    "storageSpaceTotal": 25797066752,
    "timeZone": "GMT",
    "deviceId": "caaf349de6d71f9e",
    "uptime": 1662123536430,
    "appUptime": 1662132696156,
    "macAddress": "34:D0:B8:70:E2:7B",
    "lockTaskMode": false,
    "deviceOwner": false,
    "androidVersion": "9",
    "currentVolume": 0,
    "rooted": true,
    "ipAddressInternal": "10.42.100.110",
    "lockTaskApplication": false,
    "softwareVersion": "3.24.2"
  }
}

{
   command: "playStatistics",
   success: true,
   result: {
      statistics: [
         {
            item: "Youtube video",
            started: 1662133551420,
            length: 29106
         },
         {
            item: "sample-image-5.jpg",
            started: 1662133580527,
            length: 5078
         },
         {
            item: "Youtube video",
            started: 1662133585604,
            length: 29137
         }
      ]
   }
}

Supported commands

{
  "operation": "next",
  "parameters": {"zoneName": "Whole screen"}
}

{
  "operation": "showFile",
  "parameters": {
    "zoneName": "Whole screen",
    "file": "sample1.jpg",
    "length": 5
  }
}

{
  "operation": "showSentHtml",
  "parameters": {
    "zoneName": "Whole screen",
    "length": 5,
    "html": "<strong>Sample bold text</strong>"
  }
}

{
  "operation": "playlist/set",
  "parameters": {"zoneName": "Whole screen", "playlist": 1}
}

{
  "operation": "playlist/clear",
  "parameters": {"zoneName": "Whole screen"}
}

{
  "operation": "layout/set",
  "parameters": {"layoutName": "Sample layout"}
}

{
  "operation": "layout/clear"
}

{
  "operation": "deviceInfo"
}

{
  "operation": "fullscreen/toggle"
}

{
  "operation": "zones"
}

{
  "operation": "volume/set",
  "parameters": {"vol": 5}
}

{
  "operation": "reload"
}

{
  "operation": "reboot"
}

{
  "operation": "synchronize",
  "parameters": {
    "url": "https://example.com/data.zip",
    "method": "GET",
    "target": "file.zip",
    "clearFolder": false
  }
}

Zone name in the parameters is optional, if no zone name is set, the operation will be performed in the main zone of the screen layout.

Integration with HiveMQ

MQTT integration requires an external MQTT broker, to which Slideshow can connect. You can either install HiveMQ or Mosquitto brokers on your server or use a cloud service, for example, HiveMQ Cloud (https://www.hivemq.com/mqtt-cloud-broker/). HiveMQ Cloud is free for up to 100 client devices, meaning you can connect, for example, one management application and up to 99 devices with Slideshow app for free. It doesn't support separate permissions for each credential, so make sure you don't share your MQTT username and password with anybody.

Below, you can find a step-by-step tutorial of connecting Slideshow to HiveMQ Cloud and testing the connection by receiving status messages and issuing a command.

Setting up HiveMQ cloud

1. Create new account on https://console.hivemq.cloud

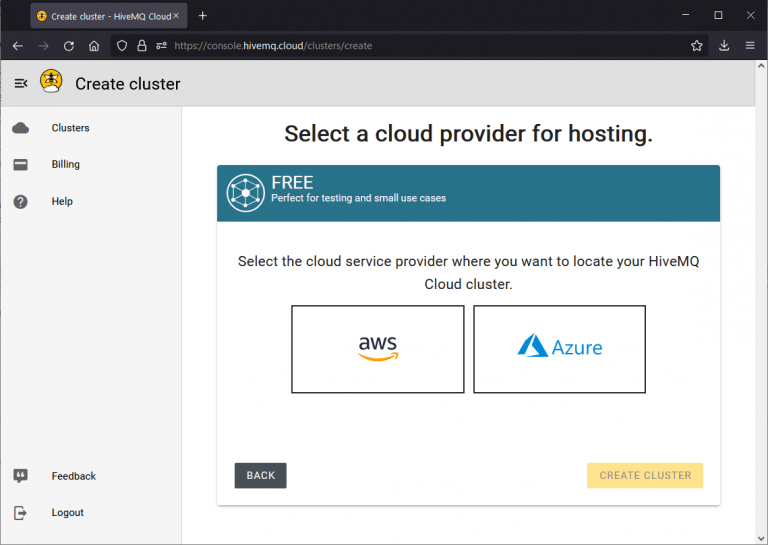

2. Select which provider you would like to use (there is almost no difference for the free tier)

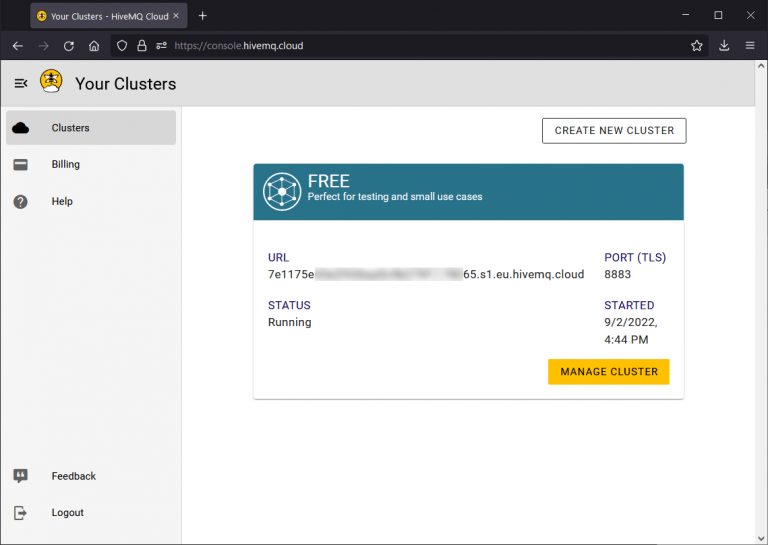

3. Note the connection details (URL and port) of the newly created cluster and click on Manage cluster

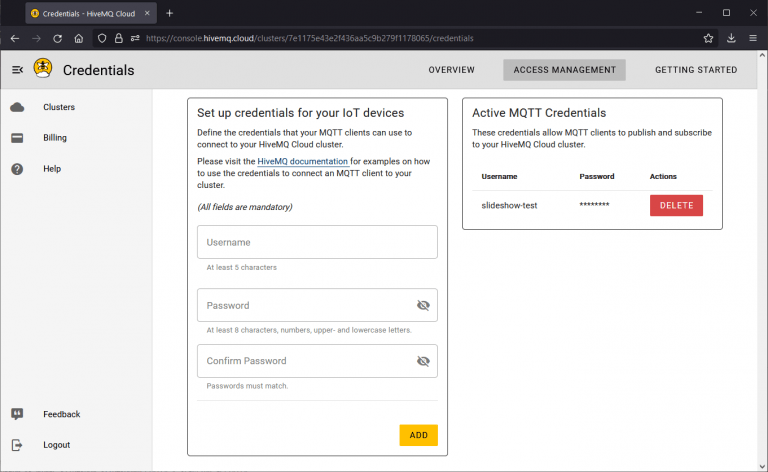

4. Click on Access management at the top and setup new credentials - username and password, which will be used by Slideshow to access the MQTT cluster.

Setting up MQTT in Slideshow

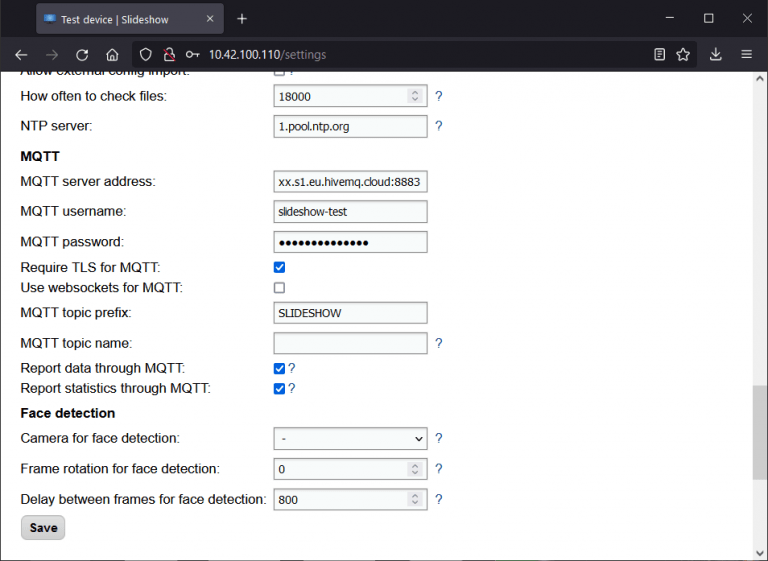

1. Open the web interface of Slideshow app, navigate to menu Settings → Device settings and adjust the following settings and click on Save
   • MQTT server address: URL and port of the cluster, for example xxxx.s1.eu.hivemq.cloud:8883
   • MQTT username: from created credentials
   • MQTT password: from created credentials
   • Require TLS for MQTT: yes / checked
   • Report data through MQTT: yes / checked
   • Report statistics through MQTT: yes / checked

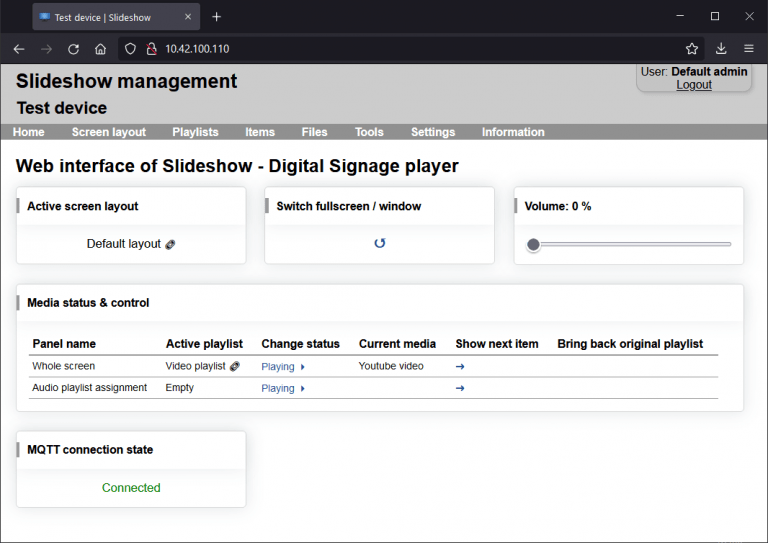

2. Reload Slideshow via menu Settings → Reboot / Reload → Reload application. After logging in back, check whether the MQTT connection state is "Connected" on the home page. If there is any other state, you can check the reason in the logs accessible via menu Information → Logs.

Testing the integration

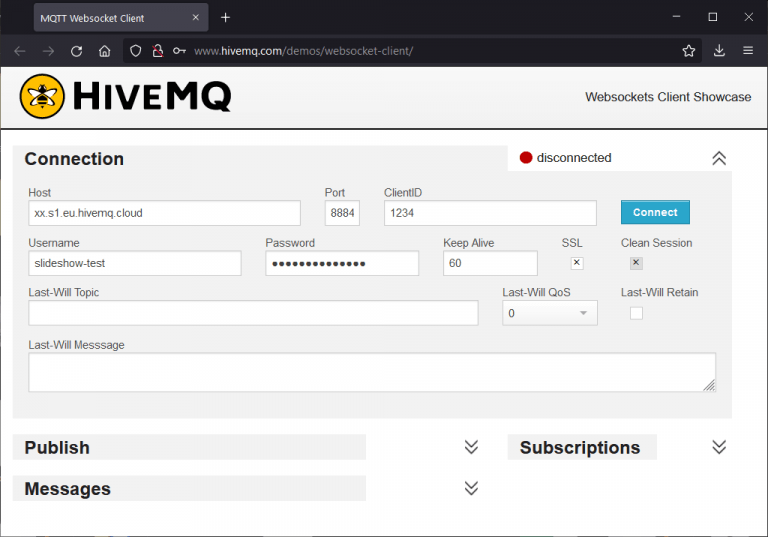

1. For testing the integration, we will use an online MQTT client which runs directly in web browser. Open http://www.hivemq.com/demos/websocket-client/, enter the connection details to your MQTT cluster and click on Connect. Make sure to enter the websocket port (usually 8884), as this client doesn't support non-websocket communication.
2. Click on Add New Topic Subscription, enter topic name # and click on Subscribe. This covers all topics created in this cluster.

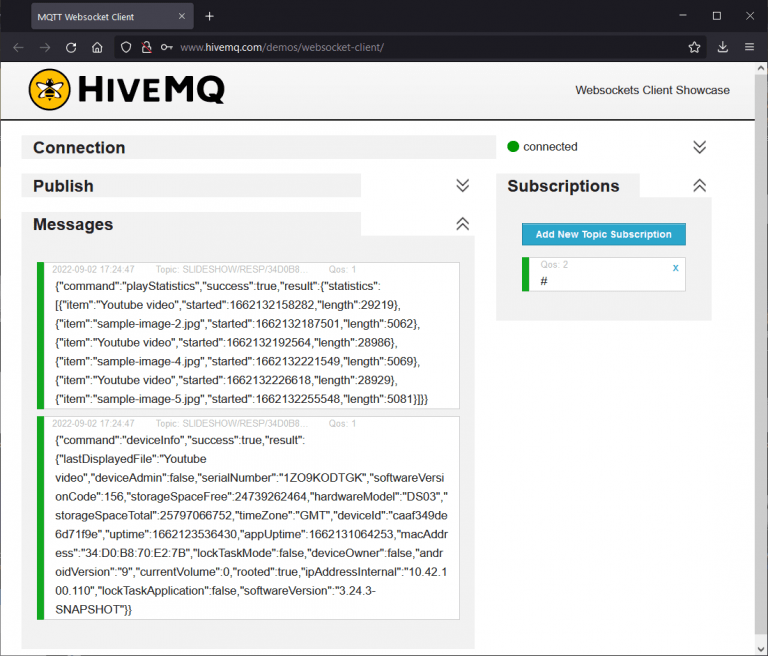

3. Wait for up to 2 minutes, and you will receive two messages from Slideshow app in the window, one with statistics about playback and one with information about the device and its status. Both are in JSON format and are computer-readable for subsequent processing.

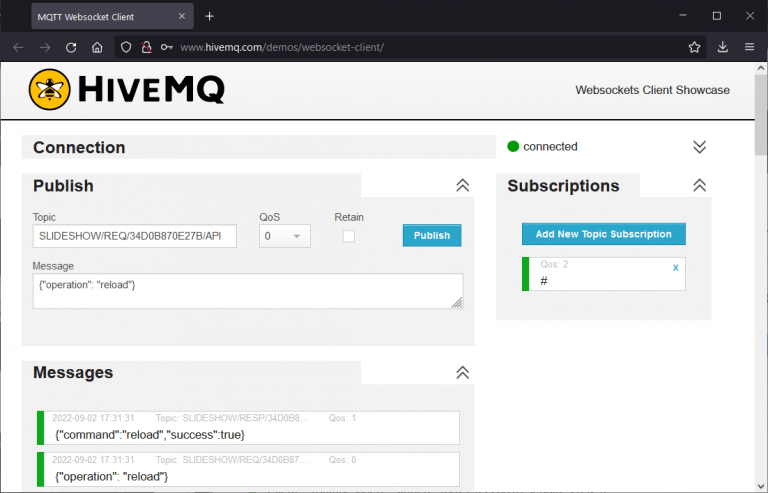

4. To test a command, you can publish message {"operation": "reload"} to topic SLIDESHOW/REQ/xyz/API, where xyz is the MAC address of your Android device running Slideshow, all caps, without separators. You will get a success reply, and on the screen of the Android device you will see that Slideshow app was restarted.
